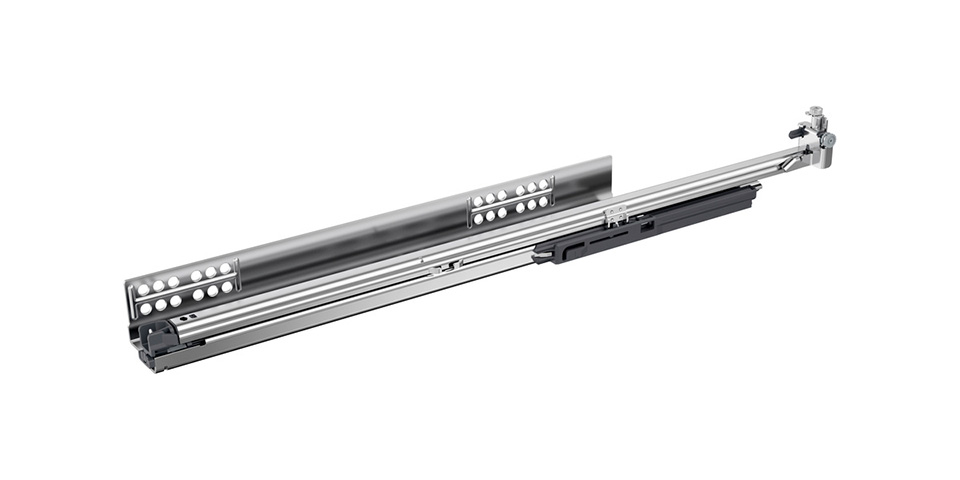

K-HETTICH Quadro V6 5D 600mm/30kg EB21 SiSy

Complete Quadro V6 5D runner set for a wooden drawer with side thickness up to 16 mm (EB21) including 2D front connectors. Integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment. Installation by sliding in with 2D connectors featuring height and side adjustment.

Integrated Silent System (SiSy) soft-closing with the option to add Push To Open Silent (PTOs, to be purchased separately) modules for handleless opening with soft closing. For the PTOs system, it is recommended to use a synchronisation shaft; synchronisation adapters are included in the PTOs module package. For extra-wide cabinets, a common front for two drawers can be used, and for simultaneous handleless opening of the connected drawers, an additional multiple PTOs synchronisation can be applied.

To create a pull-out shelf (e.g. for integrating a coffee machine, food processor, printer, etc. into a cabinet), a pull-out shelf bracket can be used, and optionally also a pull-out shelf lock.

All adjustments can be made without tools: - height +3 mm
- side +1.5/-1.5 mm
- depth +2/-1 mm
- tilt +4 mm
- radial +1.5/-1.5 mm

The dimensions of the cabinet, drawer, and drawer front are identical when using partial-extension or full-extension Quadro runners with slide-in installation.

Nominal runner length and load capacity, installation width EB, comfort feature integrated in the runner (SiSy or PTO) – see product name.

Detailed information: Hettich eCatalogue
