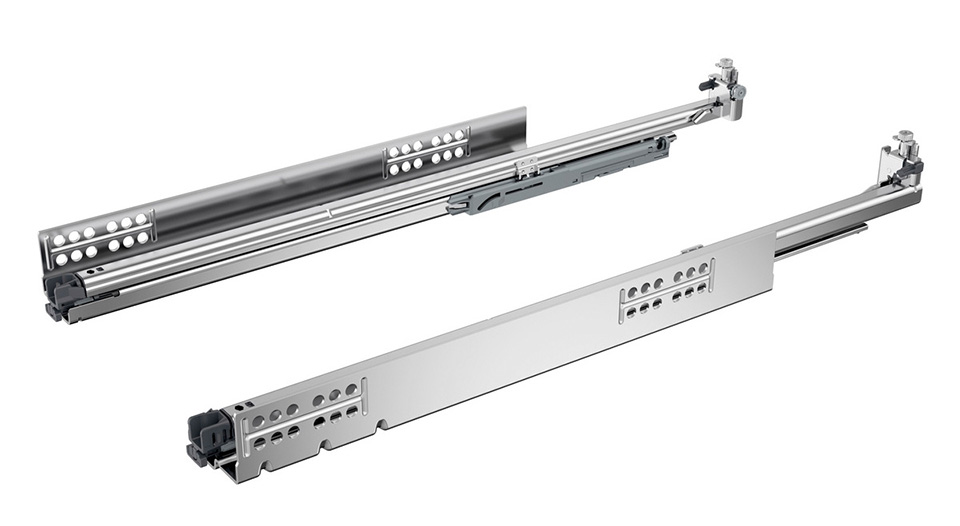

K-HETTICH Quadro V6 5D 520mm/30kg EB21 PTO
Complete Quadro V6 5D runner set for a wooden drawer with side thickness up to 16 mm (EB21) including 2D front connectors. Integrated depth adjustment, integrated tilt adjustment, integrated radial adjustment. Installation by sliding in with 2D connectors featuring height and side adjustment.
Integrated handleless opening Push To Open (PTO). For the PTO system, it is recommended to use a synchronisation shaft (synchronisation adapters must be purchased separately). For extra-wide cabinets, a common front for two drawers can be used, and for simultaneous handleless opening of the connected drawers, an additional multiple PTO synchronisation can be applied.
To create a pull-out shelf (e.g. for integrating a coffee machine, food processor, printer, etc. into a cabinet), a pull-out shelf bracket can be used, and optionally also a pull-out shelf lock.
All adjustments can be made without tools:
- height +3 mm
- side +1.5/-1.5 mm
- depth +2/-1 mm
- tilt +4 mm
- radial +1.5/-1.5 mm
The dimensions of the cabinet, drawer, and drawer front are identical when using partial-extension or full-extension Quadro runners with slide-in installation.
Nominal runner length and load capacity, installation width EB, comfort feature integrated in the runner (SiSy or PTO) – see product name.
Detailed information: Hettich eCatalogue
Composition du kit
| Photo | Titre | Code | Quantité dans l'ensemble | Prix hors TVA |
|---|---|---|---|---|
|
HETTICH 9329162 raccord 2D pour Quadro V6 5D / Quadro 25 2D L | 536100 | 1 pcs | 1,41 EUR |
|
HETTICH 9329163 raccord 2D pour Quadro V6 5D / Quadro 25 2D P | 536101 | 1 pcs | 1,41 EUR |
|
HETTICH 9332727 Quadro 5D V6 sortie totale 520mm/30kg EB21 PTO L+P | 535955 | 1 ensemble | 43,21 EUR |
