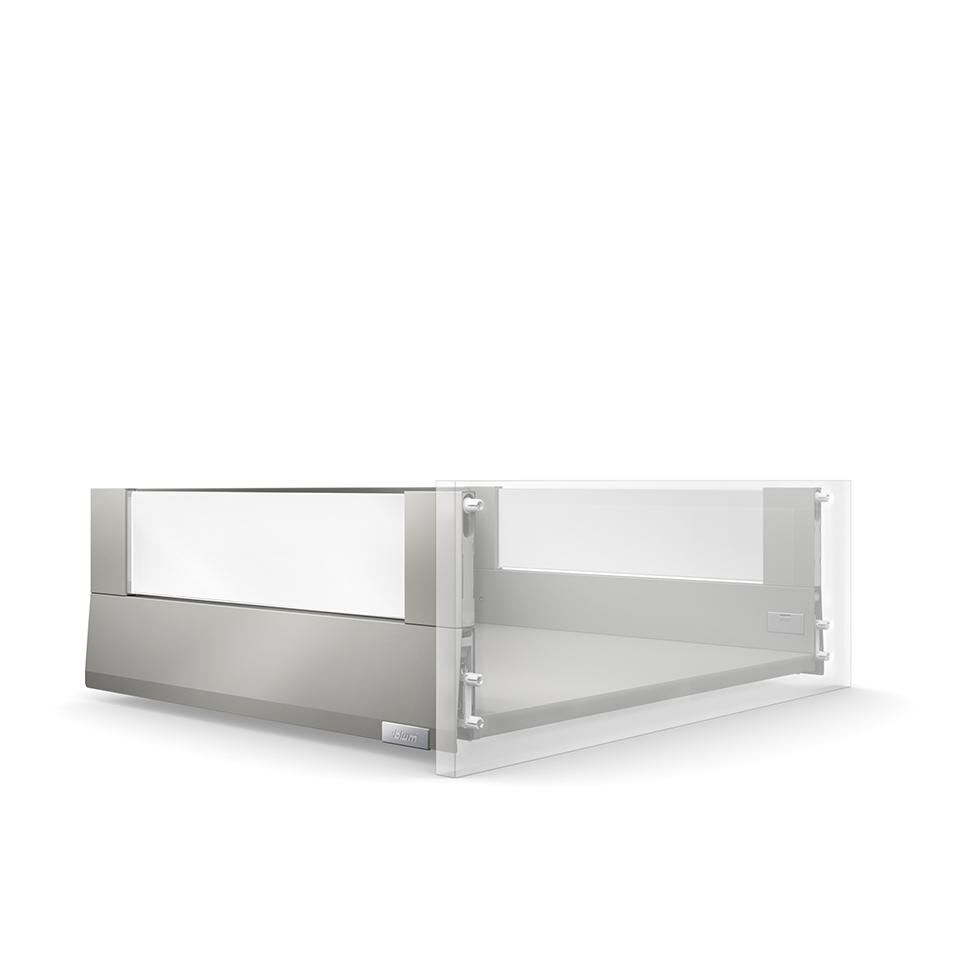

K-BLUM Merivobox, tiroir E boxcover 600mm/40kg, gris clair IG, vis a bois

The set includes all fittings for assembling one drawer – slides, sides, back brackets, and front fittings (screw, Inserta, or inner drawer).

For inner drawers, it is necessary to purchase and cut the cross elements of the front to the correct length L according to the cabinet clear width LW:
E drawers with front railing:
- front part without groove ZV4.1042M, length 1042mm (L=LW-126mm)
- cross railing ZR4.1059U, length 1059mm (L=LW-111mm)

• low KB600 ZE4L458G, length 458mm
• low KB120 ZE4L1058G, length 1058mm
• high KB600 ZE4H458G, length 458mm
• high KB1200 ZE4H1058G, length 1058mm

Alternatively, the front glass for the inner drawer can be cut by a glazier: glass thickness 8mm, height of low glass 75mm, height of high glass 142.5mm, glass width L = LW - 104mm.

The side longitudinal glasses for Boxcover are supplied by Blum only for nominal lengths of 450, 500, 550, and 600mm. For these lengths, the side glass is part of the Boxcover set.
For shorter nominal lengths, the glass must be cut/halved (L = NL - 90mm) from the above, and therefore for nominal lengths 270, 300, 350, and 400mm, the side longitudinal glasses are not part of the Boxcover set and must be purchased separately. If produced by a glazier: glass thickness 8mm, glass height 95mm, glass length L = NL - 90mm.

Nominal length, runner load capacity, type of front fitting (screw, Inserta, inner), and drawer color – see product name.
