HETTICH 9375984 Pin, PTO, Magnet, for drilling in, Short travel, light grey
- Prix de base pour ensemble
- 3,64 EUR 4,4 EUR TTC
-
En stock
Disponible uniquement dans l'entrepôt central d'Ostrava (République tchèque). Les quantités exactes sont disponibles sur Demos24Plus - www.demos24plus.com. - Acheter
- Marque
- Hettich
- Code de groupe
- 1010010105
- Unité (MJ)
- ensemble
- Extensibilité
- 1 ensemble
- Emballage
- 25 ensemble

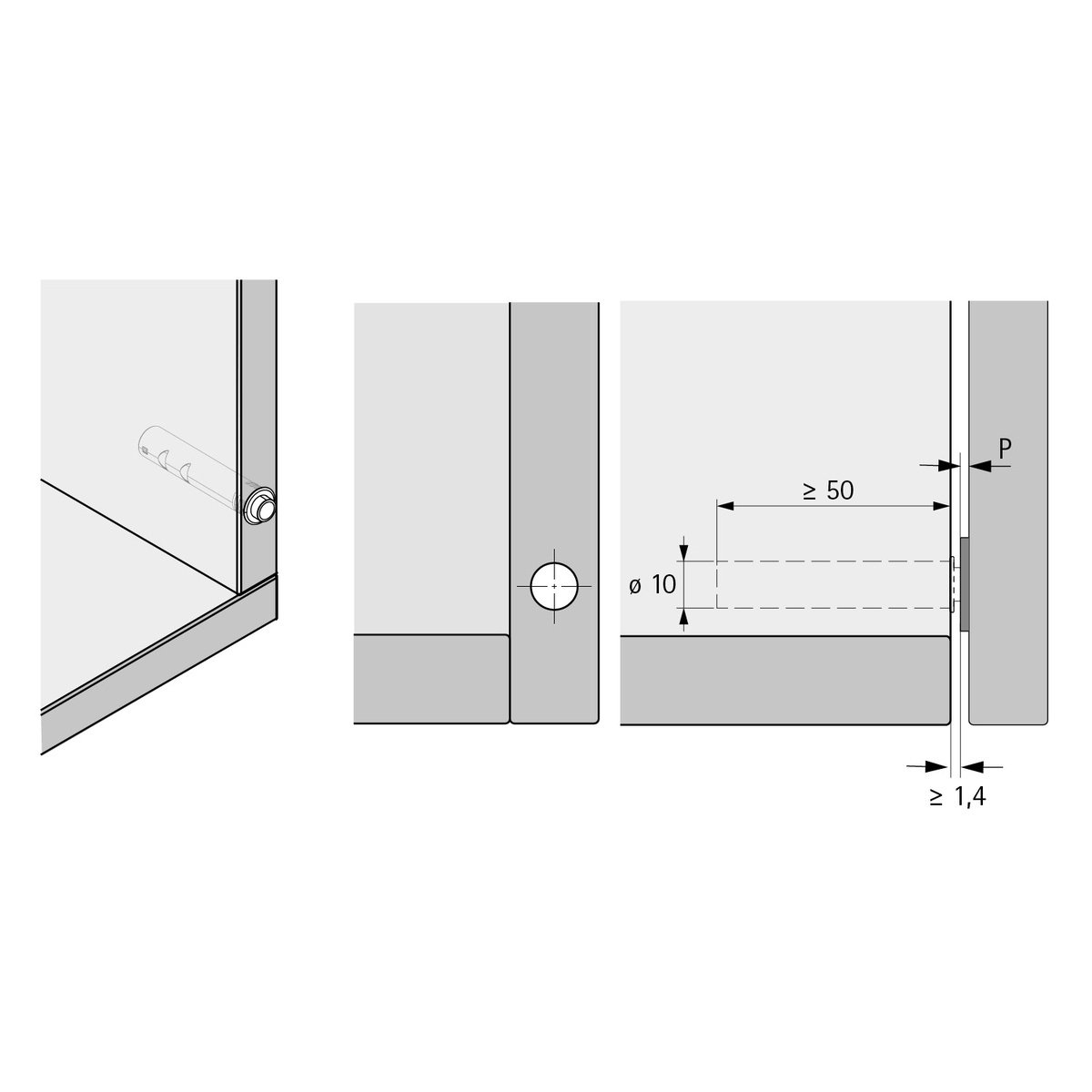

PTO pin with magnet for handle-less opening of furniture doors. It can be installed into the cabinet edge (for drilling in) or on the cabinet base/side/top panel (with an adapter). The activation stroke is 1,4 mm and the total adjustment range is 6 mm. Pins are supplied in various versions - specific version – see product name.
Pins with magnet are designed for hinges without a closing spring (Tip-on, PTO, Push). The door must be fitted with a magnetic counterpart (self-adhesive, press-in or screw-on). When pressed, the door is released from the magnet and opens to some extent. The opening distance depends on the size and/or weight of the door and on the type of pusher used. When closing, a slight clicking sound may be heard as the door is guided onto the magnet.
The set includes:

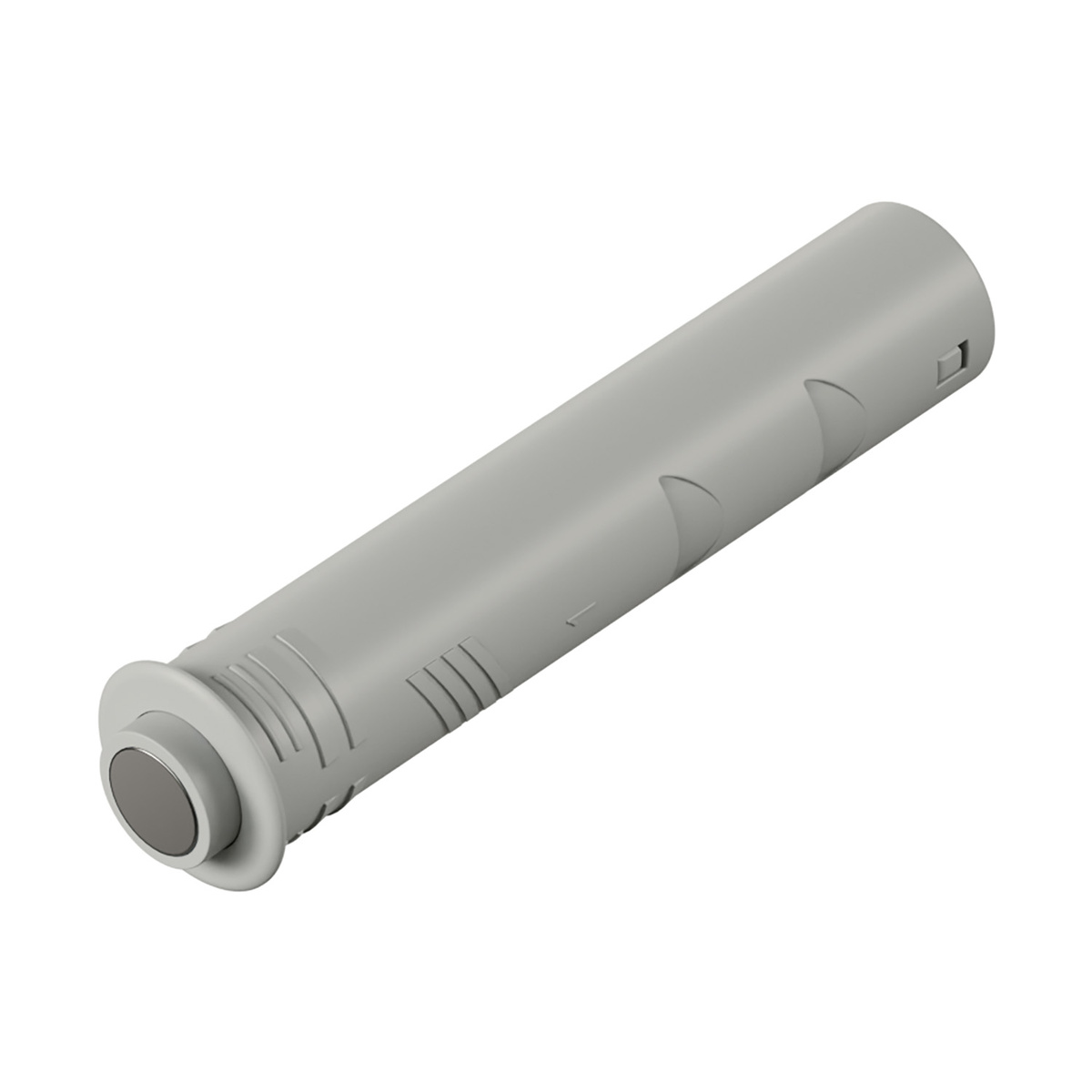

1x PTO pin with magnet
1x upper part of the adapter (adapter version only)
1x lower part of the adapter (adapter version only)
1x counterpart (self-adhesive)
