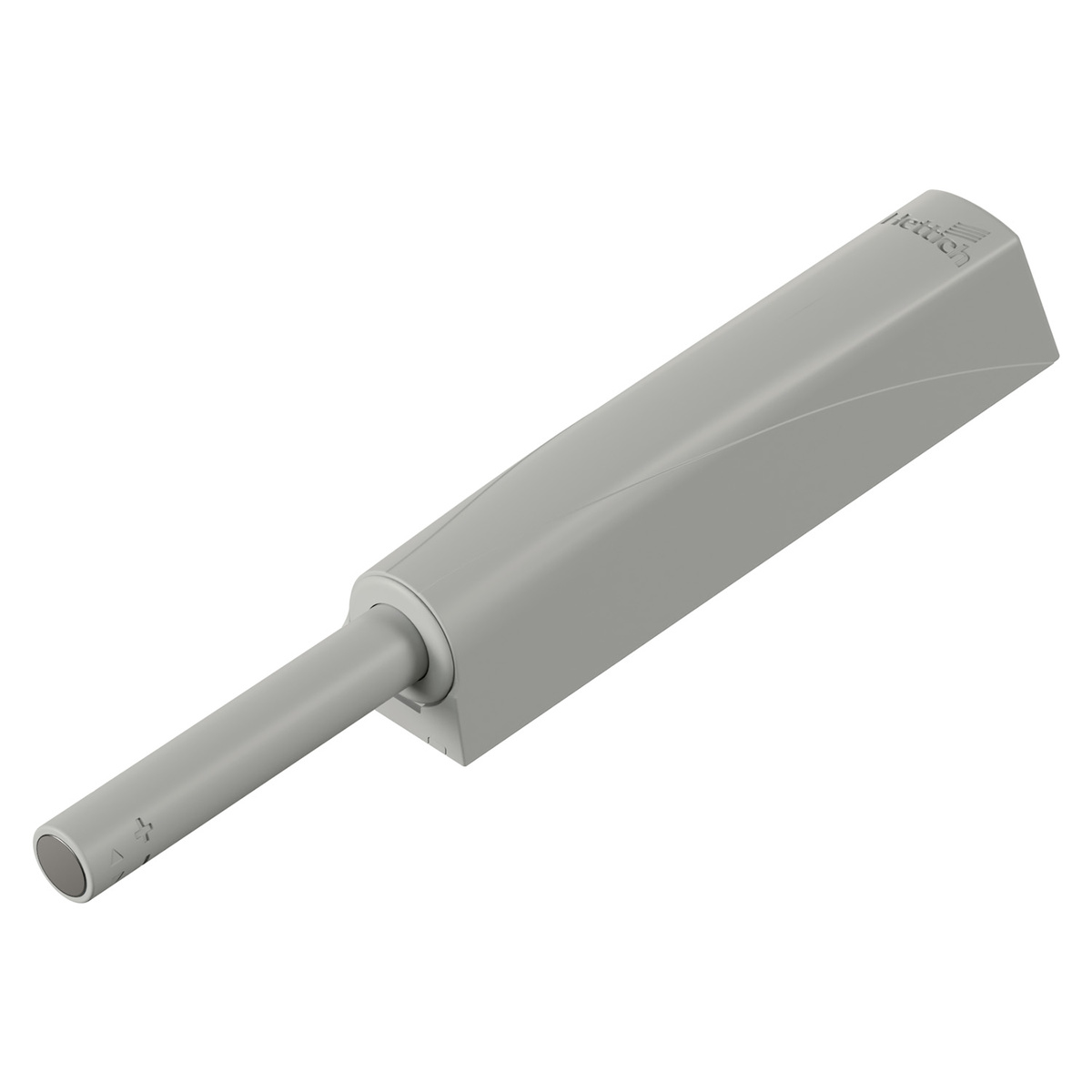

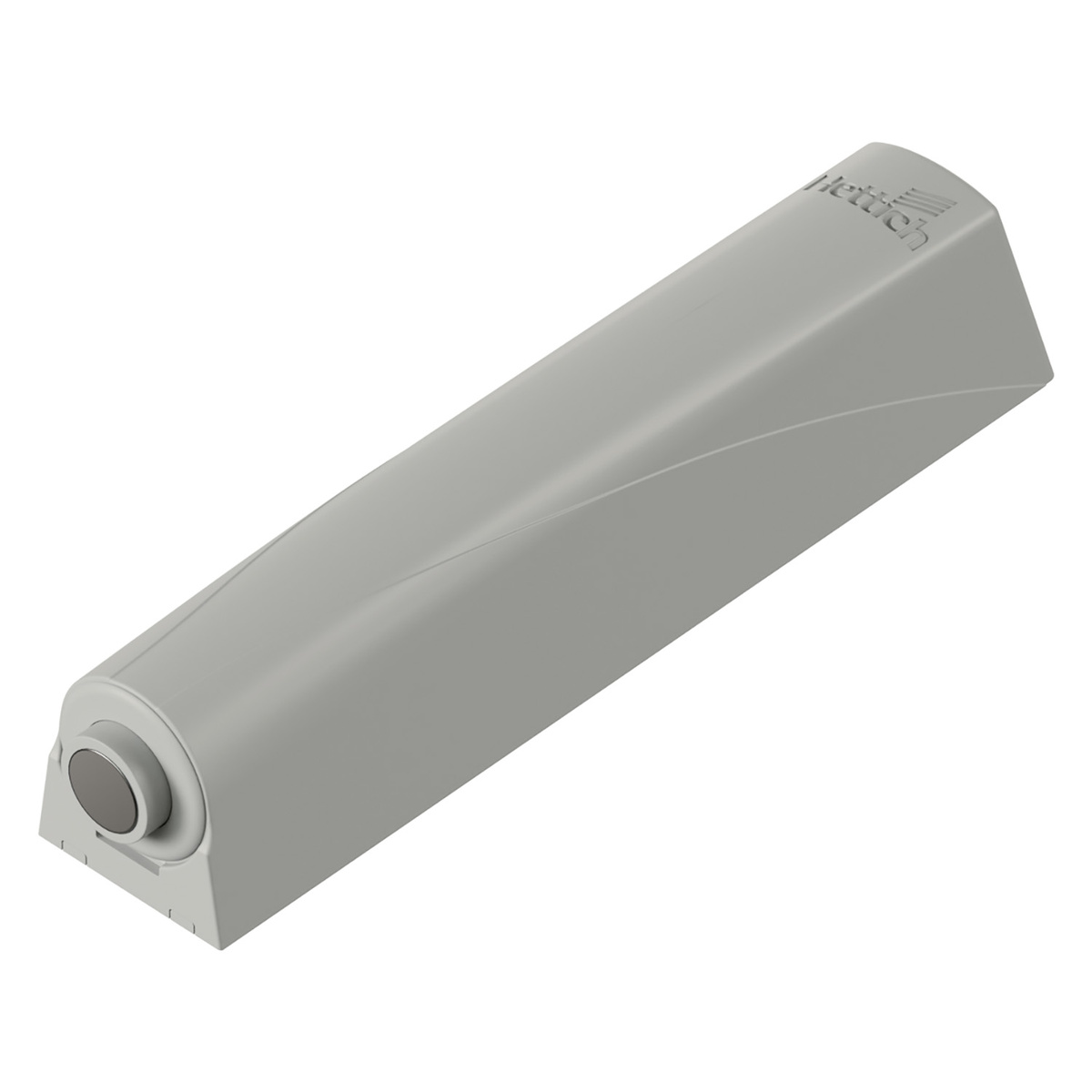

HETTICH 9375981 Pin, PTO, Magnet, for screwing on, Long travel, light grey

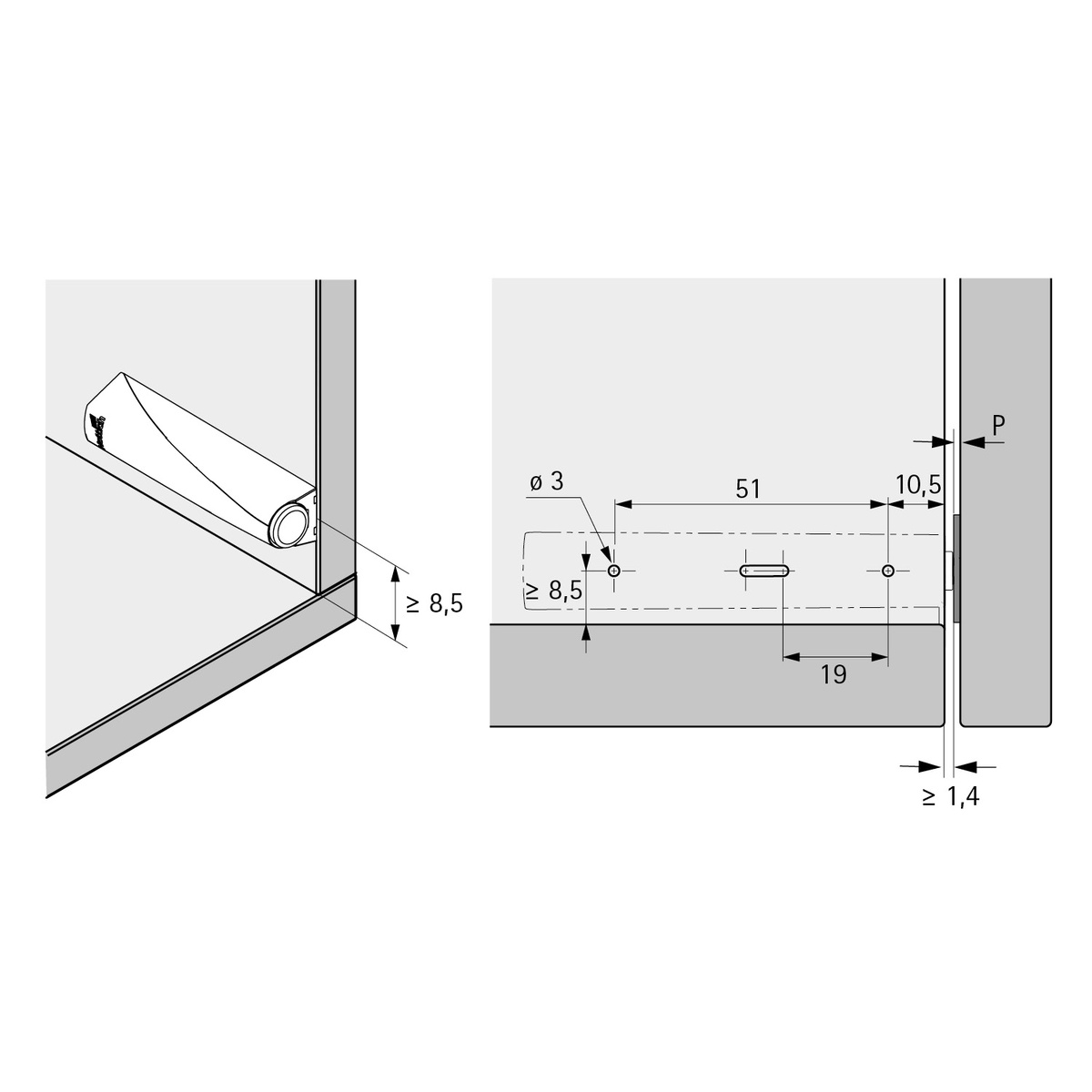

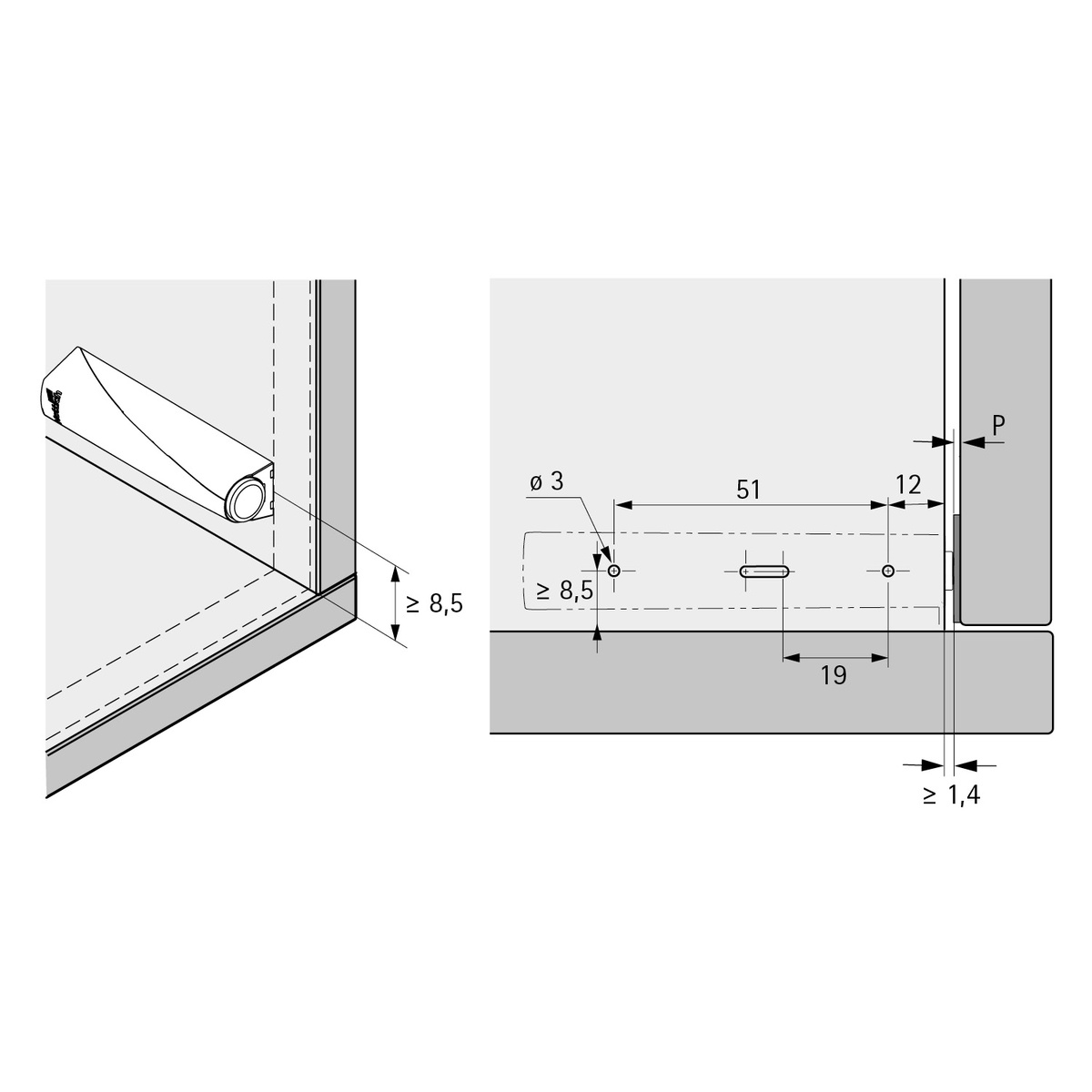

PTO pin with magnet for handle-less opening of furniture doors. It can be installed into the cabinet edge (for drilling in) or on the cabinet base/side/top panel (with an adapter). The activation stroke is 1,4 mm and the total adjustment range is 6 mm. Pins are supplied in various versions - specific version – see product name.

Pins with magnet are designed for hinges without a closing spring (Tip-on, PTO, Push). The door must be fitted with a magnetic counterpart (self-adhesive, press-in or screw-on). When pressed, the door is released from the magnet and opens to some extent. The opening distance depends on the size and/or weight of the door and on the type of pusher used. When closing, a slight clicking sound may be heard as the door is guided onto the magnet.

The set includes:
1x PTO pin with magnet
1x upper part of the adapter (adapter version only)
1x lower part of the adapter (adapter version only)
1x counterpart (self-adhesive)
