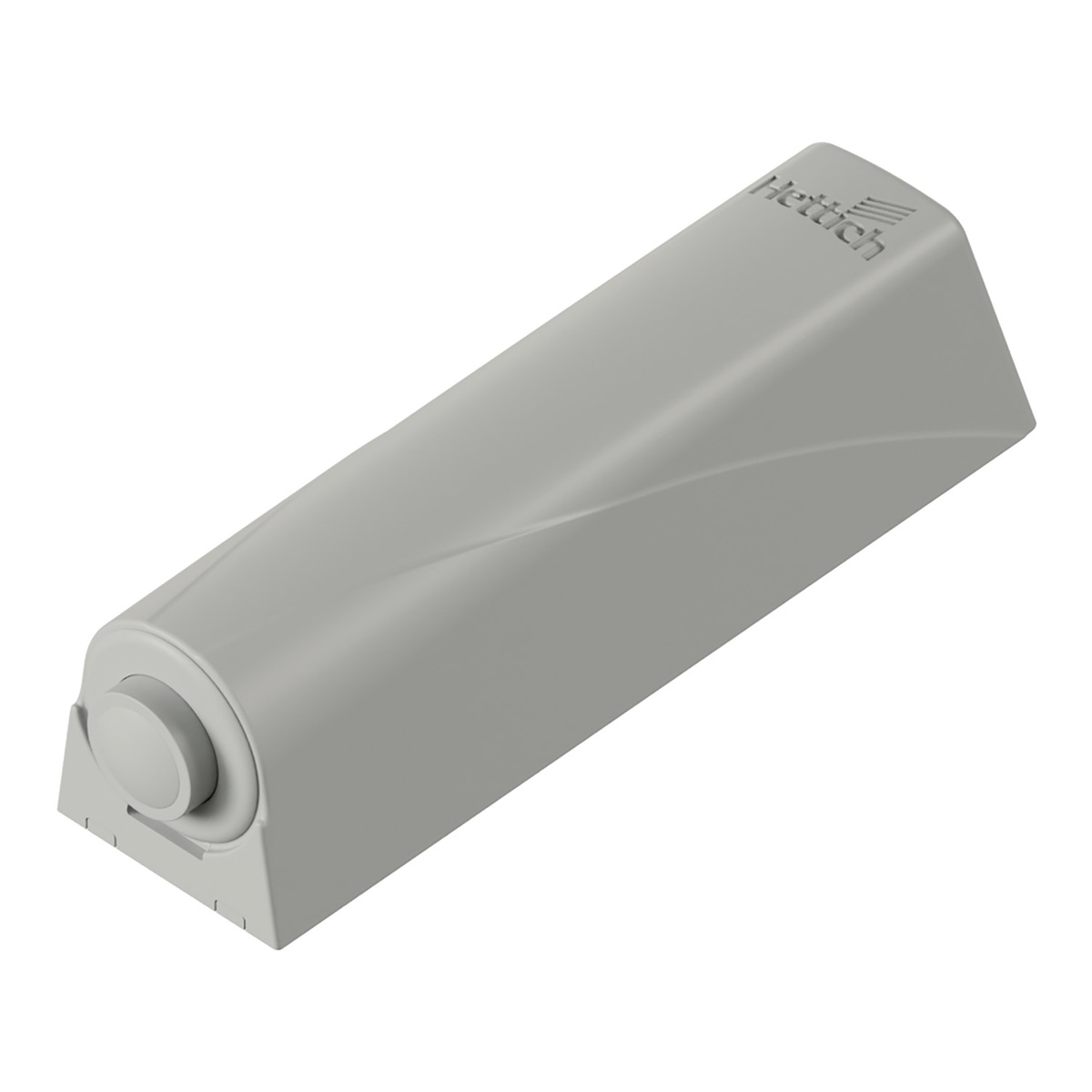

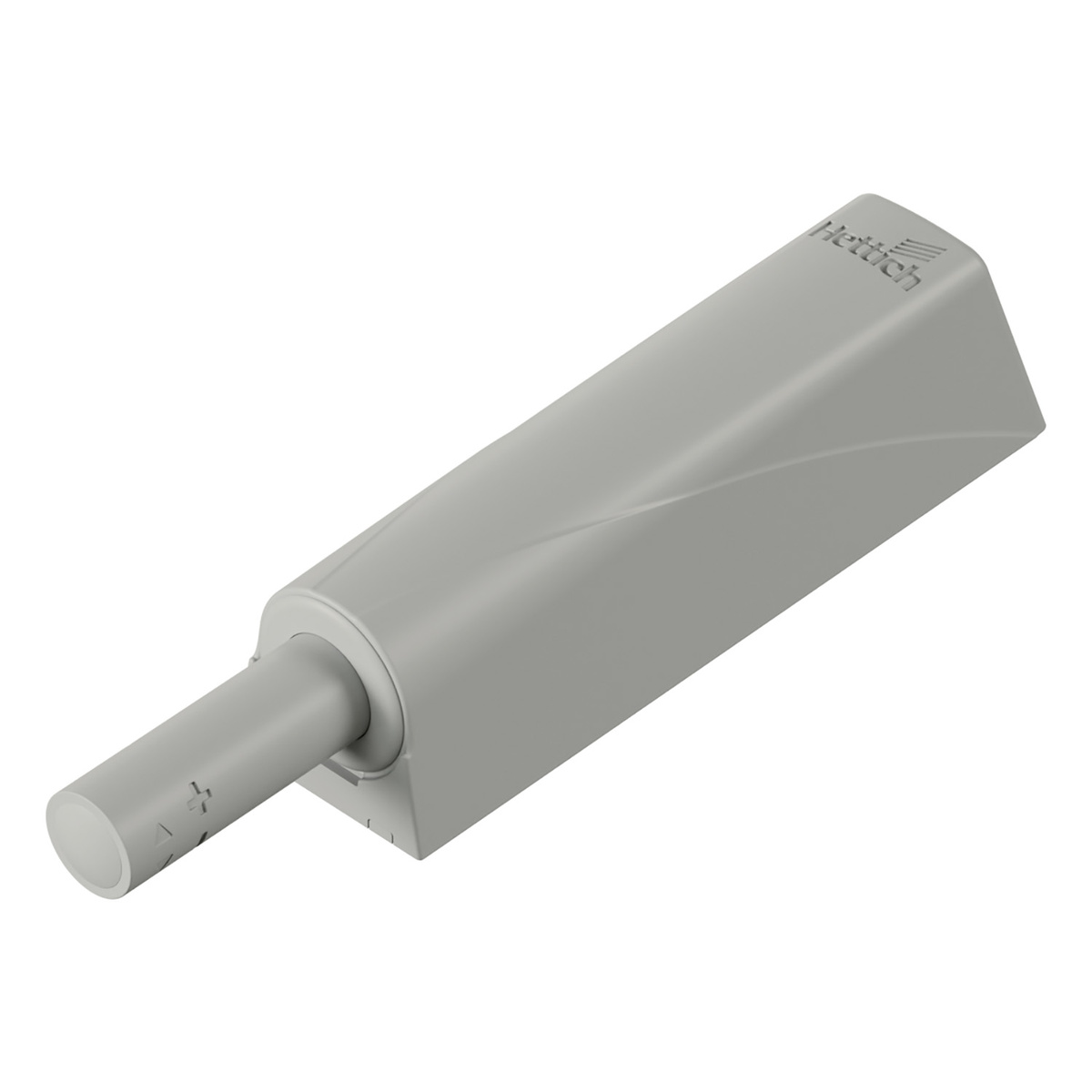

HETTICH 9375900 Pin, PTO, for screwing on, Short travel, light grey
- Prix de base pour ensemble
- 3,73 EUR 4,51 EUR avec TVA
-
En stock
Disponible uniquement dans l'entrepôt central d'Ostrava (République tchèque). Les quantités exactes sont disponibles sur Demos24Plus - www.demos24plus.com. - Acheter
- Marque
- Hettich
- Code de groupe
- 101004
- Unité (MJ)
- ensemble
- Extensibilité
- 1 ensemble
- Emballage
- 25 ensemble

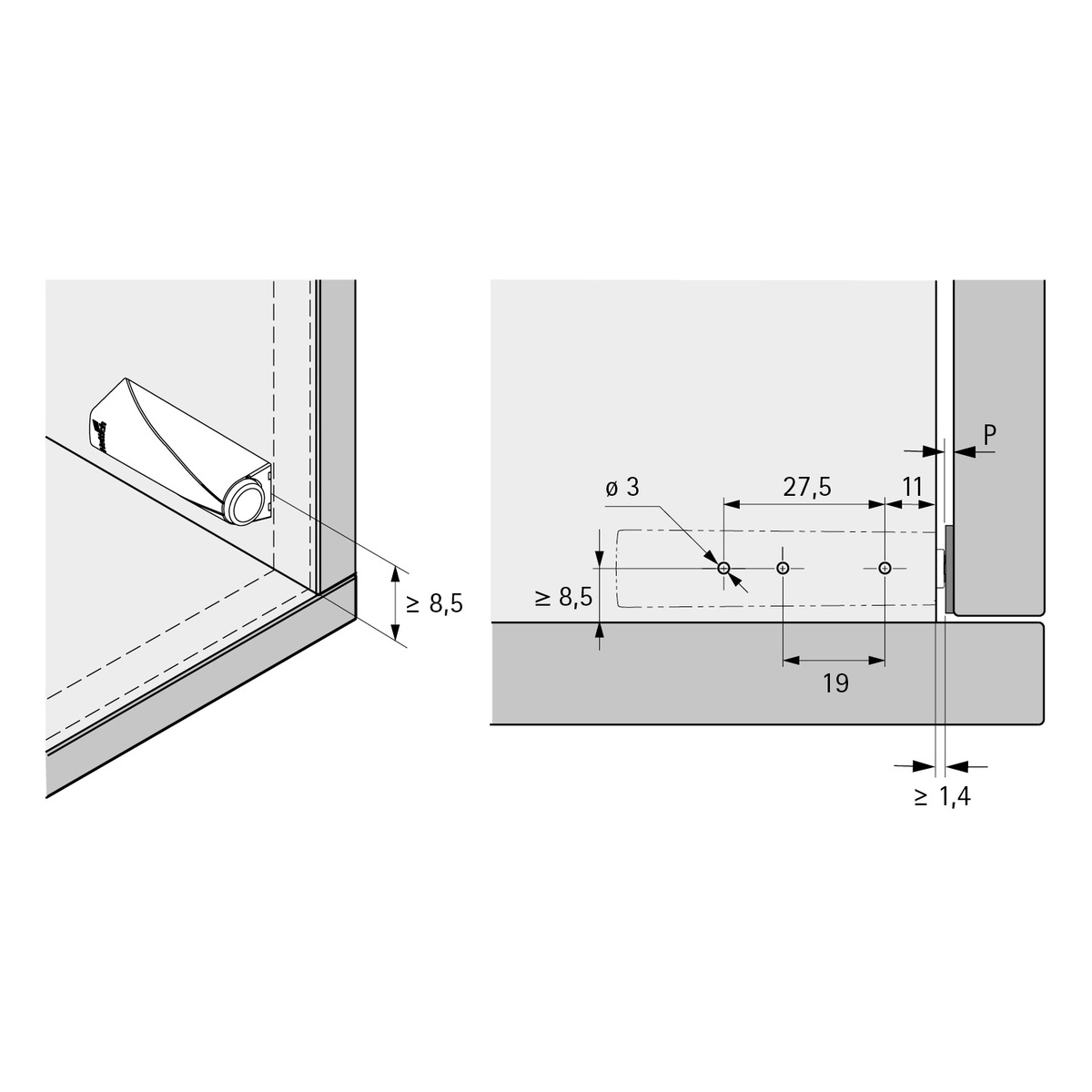

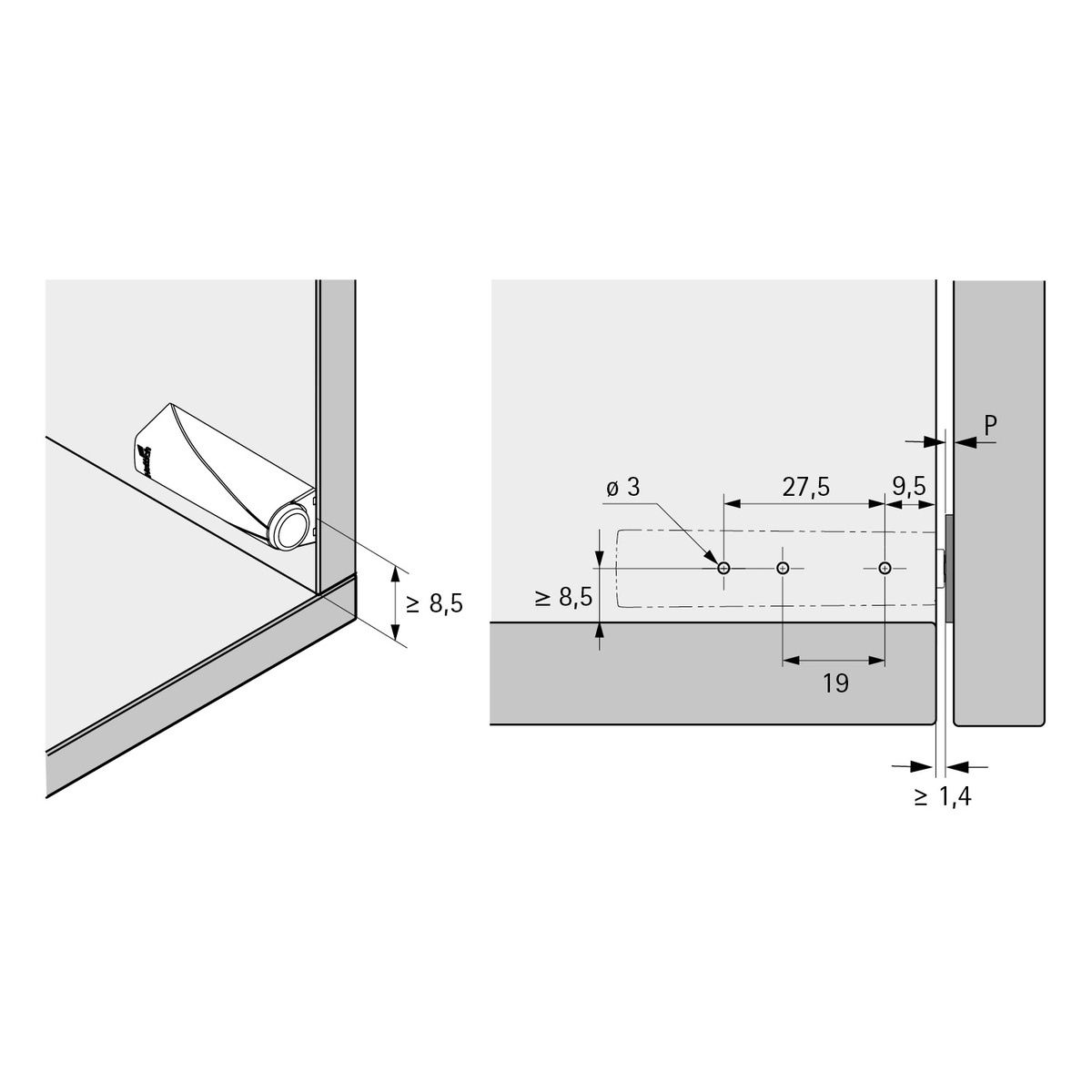

PTO pin with contact pad for handle-less opening of furniture doors. It can be installed into the cabinet edge (for drilling in) or on the cabinet base/side/top panel (with an adapter). The activation stroke is 1,4 mm and the total adjustment range is 6 mm. Pins are supplied in various versions - specific version – see product name.
Pins with contact pad are designed for hinges with a closing spring and without soft closing. When pressed, the door only opens slightly to the length of the extended pin (14 mm / 37 mm) and must then be opened manually. For freestanding cabinets and overlay doors, the short plunger (14 mm extension) is sufficient, for inset doors and/or adjacent cabinets (doors), a long plunger (37 mm extension) must be used. The advantages are silent closing, suitability for glass doors, and a wider range of stock hinges with a closing spring.
The set includes:
1x PTO pin with the contact pad
1x upper part of the adapter (adapter version only)
1x lower part of the adapter (adapter version only)
